MSQNet ICCVW '23
🏆 ICCV Workshops 2023 (NIVT) • Official Project Page

Actor-Agnostic Multi-Label Action Recognition
with Multi-Modal Query (MSQNet)

Anindya Mondal*
Sauradip Nag*
Joaquin M. Prada
Xiatian Zhu
Anjan Dutta*
University of Surrey, United Kingdom  •  * Equal contribution / Corresponding authors
CVF Open Access Paper arXiv:2307.10763 GitHub Code Poster PDF Video Talk
Illustration of large action variation across different actors

Figure 1: Large action variation across diverse actors (animals & humans). The same semantic action (e.g., eating, running, preying, grooming) manifests with drastic topological and morphological variations across species. Prior methods rely on actor-specific pose estimators or tailored designs. MSQNet introduces an actor-agnostic vision-language query paradigm that recognizes multi-label actions seamlessly across humans and wildlife without actor pose estimation.

📄 Abstract

Existing action recognition methods are typically actor-specific due to the intrinsic topological and apparent differences among actors. This requires actor-specific pose estimation (e.g., humans vs. animals), leading to cumbersome model design complexity and high maintenance costs. Moreover, they often focus on learning the visual modality alone and single-label classification whilst neglecting other available information sources (e.g., class name text) and the concurrent occurrence of multiple actions.

To overcome these limitations, we propose a new approach called actor-agnostic multimodal multi-label action recognition, which offers a unified solution for various types of actors, including humans and animals. We further formulate a novel Multimodal Semantic Query Network (MSQNet) model in a transformer-based object detection framework (e.g., DETR), characterized by leveraging visual and textual modalities to represent the action classes better. The elimination of actor-specific model designs is a key advantage, as it removes the need for actor pose estimation altogether. Extensive experiments on five publicly available benchmarks show that our MSQNet consistently outperforms the prior arts of actor-specific alternatives on human and animal single- and multi-label action recognition tasks by up to 50%.

🐾

Actor-Agnostic Formulation

Eliminates the requirement for species-specific pose estimation models, handling humans and 850+ animal species within a single unified architecture.

🔤

Multimodal Semantic Query

Initializes label queries using CLIP text embeddings and dynamically conditions queries on visual frame priors for holistic scene understanding.

⚡

SOTA Multi-Label Results

Massive boost on Animal Kingdom from 25.25% to 73.10% mAP (+47.85% absolute gain), plus state-of-the-art results on Charades, Thumos14, and Hockey.

🌐

Zero-Shot Generalization

Excels in zero-shot transfer on unseen action categories across 50% and 75% splits, outperforming VideoCOCA, CLIP-Hitchhiker, and BIKE.

🧠 MSQNet Architecture

A DETR-inspired Transformer architecture for vision-language multi-label action classification

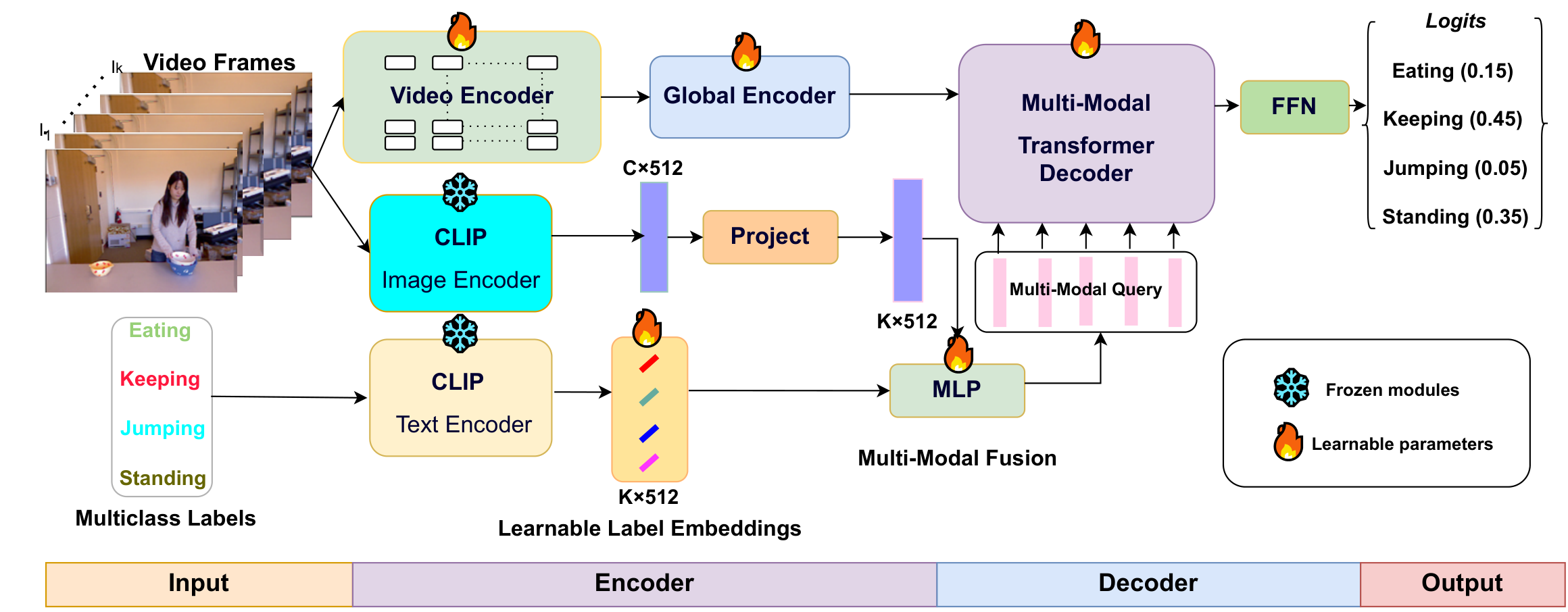

MSQNet Architecture Diagram

Figure 2: Overview of MSQNet. The model consists of three core components: (1) Spatio-temporal Video Encoder extracting divided space-time patch tokens from input frames, (2) Multimodal Query Encoder which fuses class name semantic text embeddings (via CLIP text encoder) and global video embeddings (via CLIP vision encoder), and (3) Multimodal Transformer Decoder that transforms video representations via multi-head cross-attention into action class probabilities via a GroupWise Linear head.

1. Spatio-Temporal Video Encoder

A video sequence \(V \in \mathbb{R}^{T \times 3 \times H \times W}\) is tokenized into spatio-temporal patches. With divided space-time attention (TimeSformer backbone), the encoder models motion dynamics and spatial context independently across layers.

2. Multimodal Query Encoder

Instead of standard random query vectors, label queries \(\mathcal{Q}_l \in \mathbb{R}^{K \times D}\) are initialized with CLIP text representations of class names and concatenated with CLIP video features \(\mathcal{Q}_v\) through a projection layer:

\[ \mathcal{Q}_0 = \mathbf{W}_\text{que}[\mathcal{Q}_l, \mathcal{Q}_v] \]

3. Multimodal Transformer Decoder

The multimodal queries cross-attend to video spatio-temporal tokens, updating action class queries with localized visual cues. A GroupWise Linear layer computes binary logits for multi-label prediction.

🔍 Qualitative Analysis & Visualizations

Attention rollouts, t-SNE action embeddings, and real-time video prediction demos

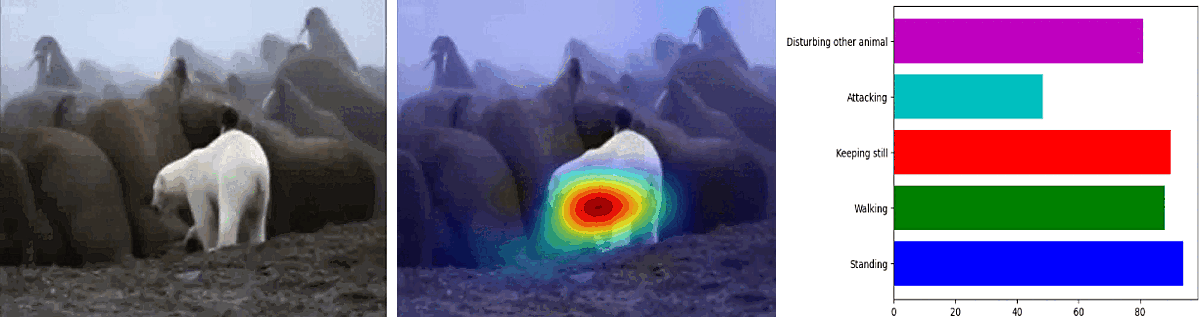

Multi-Label Temporal Prediction on Unconstrained Videos

MSQNet dynamically tracks multiple concurrent actions performed across video sequences without needing pre-extracted bounding boxes or actor poses.

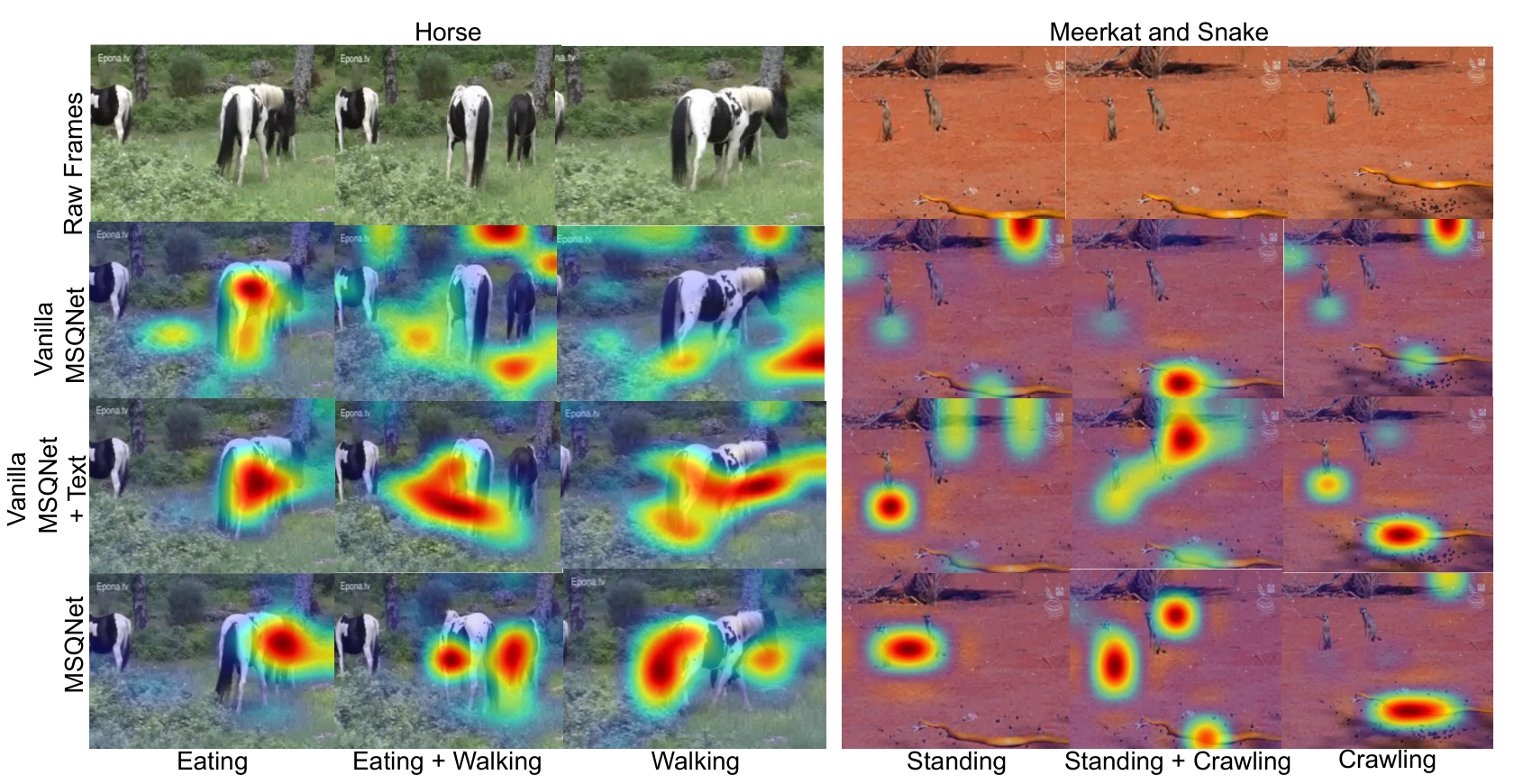

Attention Rollout Comparison Across Queries

Comparison of attention heatmaps on Animal Kingdom videos: Raw Frame → Bare Video Backbone (attends diffusely to background) → Uni-modal Prompt (focuses on animal body) → MSQNet (accurately attends to key semantic parts: horse mouth and grass for "Eating", legs for "Walking", and bodies for "Standing" and "Crawling").

GradCAM attention comparison

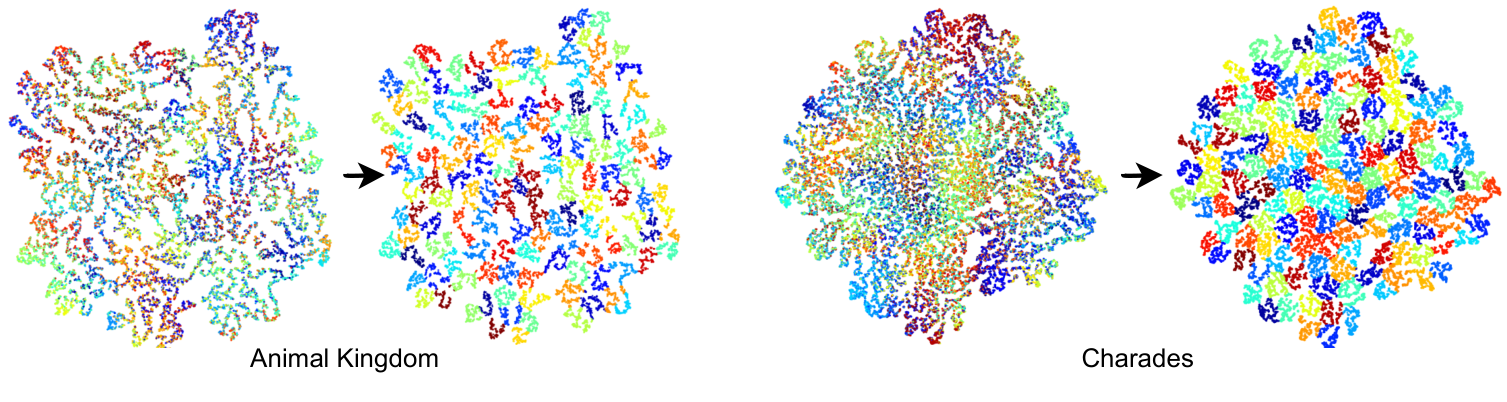

t-SNE Embeddings Before vs. After Multimodal Decoder

t-SNE visualization of action representations on Animal Kingdom and Charades. Action classes form significantly tighter, more discriminative semantic clusters after undergoing multimodal query transformation in the transformer decoder.

t-SNE Embeddings

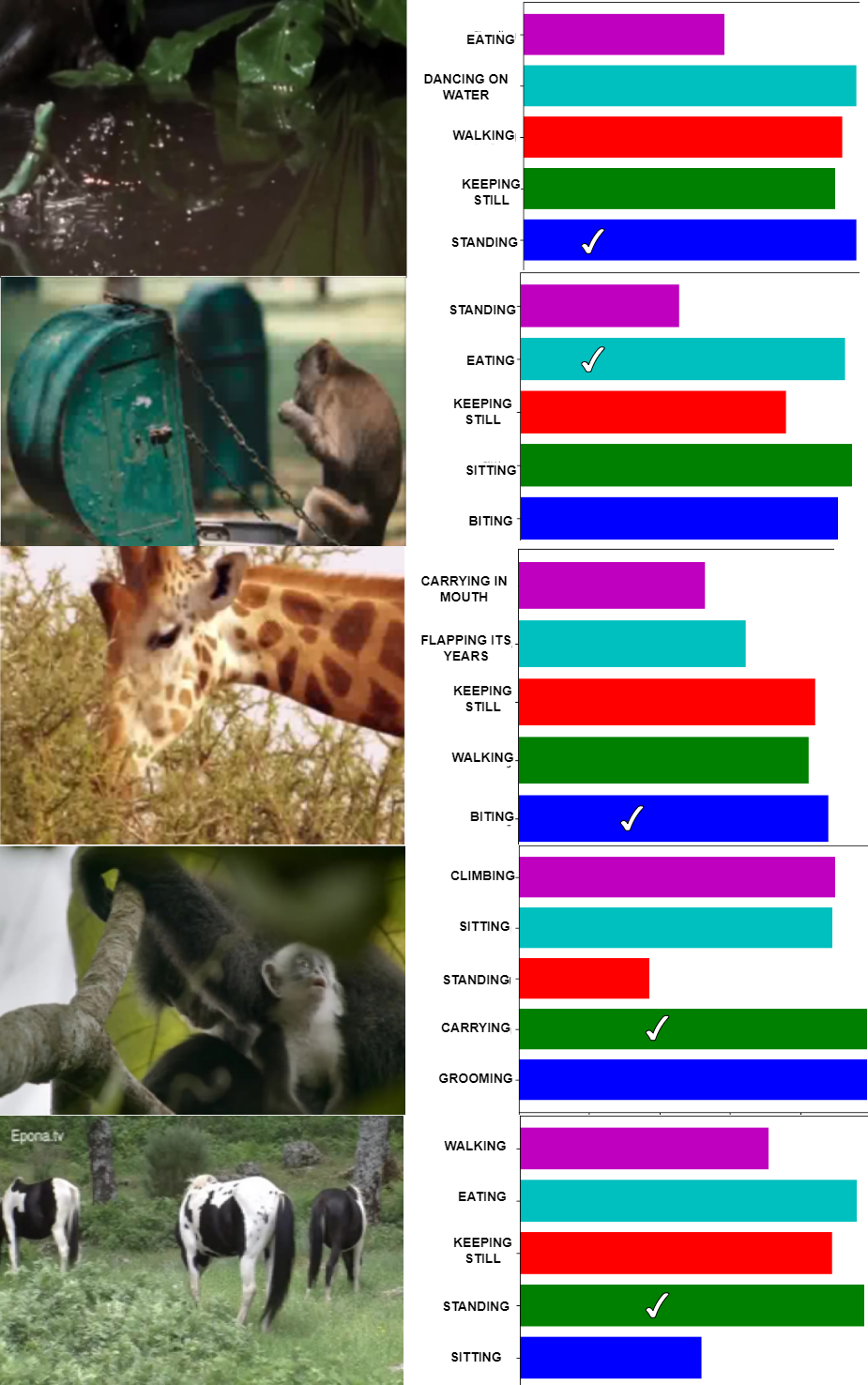

Top-5 Predicted Classes with Confidence Bars

Predicted class confidences and ground-truth matches on complex multi-label scenarios. MSQNet consistently places the true action classes among the top ranked predictions.

Prediction confidence scores

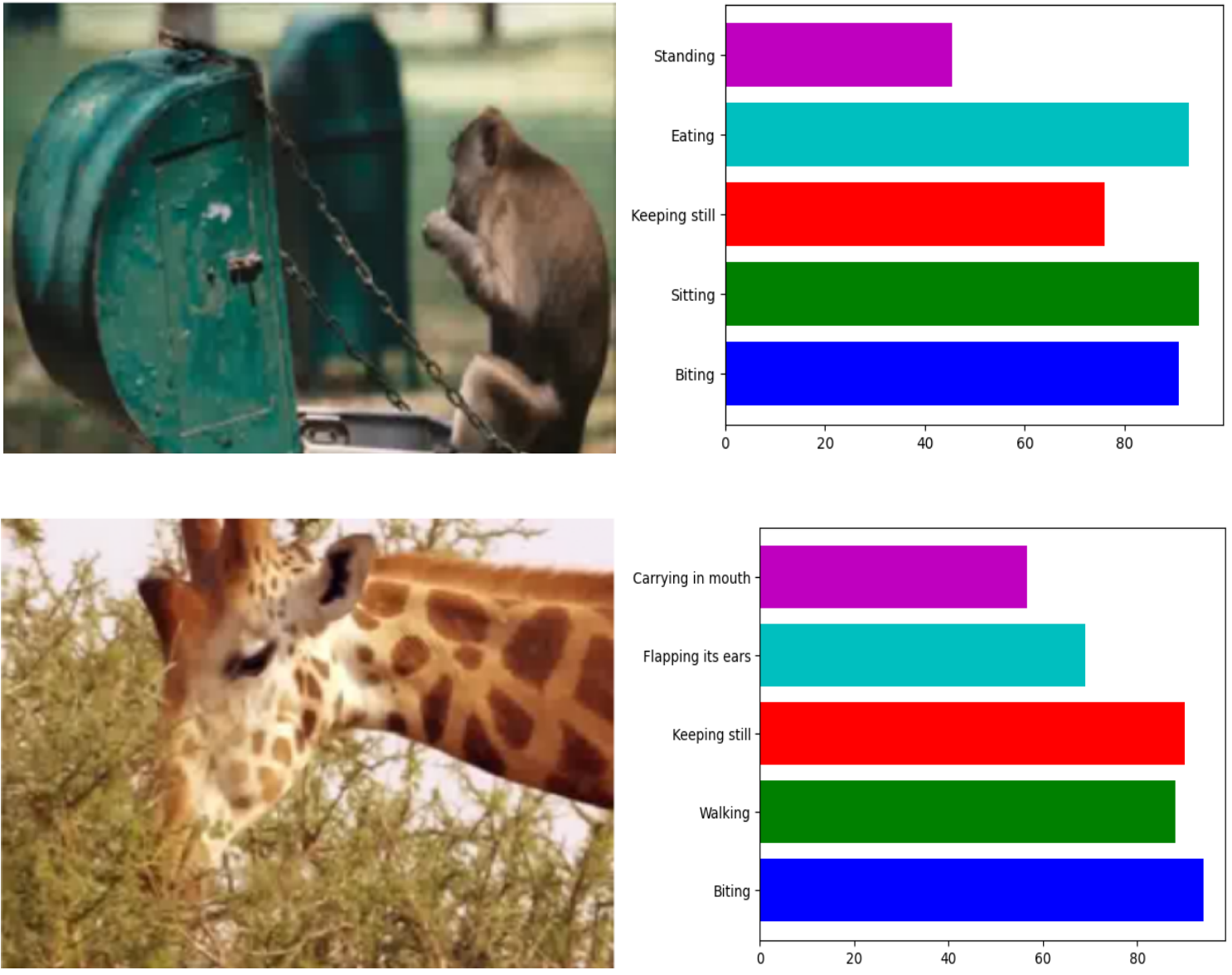

Detailed prediction analysis

📊 Benchmark Results

Consistent state-of-the-art performance across 5 public benchmarks

1. Fully-Supervised Action Recognition Benchmark

Dataset Method Backbone Pretrain Multimodal Query (MMQ) Metric / Score
Animal Kingdom CARe (ICCV '21) X3D - No 25.25% mAP
CARe (ICCV '21) I3D - No 16.48% mAP
MSQNet (Text-Only) TimeSformer K400 No 71.63% mAP
MSQNet (Ours) SOTA TimeSformer K400 Yes 73.10% mAP (+47.85%)
Charades AFAC (CVPR '21) Nonlocal-101 - No 44.20% mAP
MViT (ICCV '21) SlowFast K600 No 43.90% mAP
ActionCLIP ViT-B - No 44.30% mAP
MSQNet (Ours) SOTA TimeSformer K400 Yes 47.57% mAP
Thumos 14 SSN C3D - No 45.42% Acc
R-C3D C3D - No 57.19% Acc
BMN C3D S1M No 62.12% Acc
MSQNet (Ours) SOTA TimeSformer K400 Yes 83.16% Acc (+21.04%)
Hockey EO-SVM - - No 90.00% Acc
AFAC CSN-152 - No 96.30% Acc
MSQNet (Ours) SOTA TimeSformer K400 Yes 96.95% Acc
HMDB51 BIKE (CVPR '23) ViT WIT-400M Yes 84.31% Acc
R2+1D-BERT R(2+1)D IG65M No 85.10% Acc
VideoMAE V2-g ViT K400/K600 No 88.10% Acc
MSQNet (Ours) SOTA TimeSformer K400 Yes 93.25% Acc

2. Zero-Shot Action Recognition Benchmark

Split Method Thumos 14 (Acc) Charades (mAP) HMDB51 (Acc)
Reported Prior SoTA VideoCOCA (2022) - 21.10% 58.70%
CLIP-Hitchhiker (2022) - 25.80% -
BIKE (2023) - - 61.40%
50% Seen Split Vanilla MSQNet 49.37% 15.87% 45.66%
Vanilla MSQNet + Text Init 53.76% 18.30% 51.22%
MSQNet (Full Model) 63.98% 30.91% 59.24%
75% Seen Split Vanilla MSQNet 52.02% 17.43% 48.37%
Vanilla MSQNet + Text Init 60.28% 18.62% 59.58%
MSQNet (Full Model) 75.33% 35.59% 69.43%

🚀 Quickstart & Reproducibility

Reproduce all results in 4 simple steps

Clone the repository and install dependencies using pip or Conda:

bash
# 1. Clone repository
git clone https://github.com/mondalanindya/MSQNet.git
cd MSQNet

# 2. Option A: Install via pip
pip install -r requirements.txt

# Option B: Create conda environment
conda env create -f environment.yml
conda activate msqnet

Set up datasets under ./datasets or specify via --data_dir <path>:

Directory Hierarchy
datasets/
├── AnimalKingdom/
│   └── action_recognition/
│       ├── annotation/
│       │   ├── train_light.csv
│       │   └── val_light.csv
│       └── dataset/
│           └── image/
│               ├── [video_id_001]/
│               │   ├── 00001.jpg
│               │   └── ...
├── Charades/
├── Hockey/
└── THUMOS14/

Generate lighter annotations for Animal Kingdom:
python multi-label-action-main/utility/lighter_annotations.py --input /path/to/train.csv --output /path/to/train_light.csv

Train MSQNet on Animal Kingdom, Charades, or Hockey:

bash
# Single GPU training on Animal Kingdom
python run.py \
    --dataset animalkingdom \
    --model msqnet \
    --data_dir ./datasets \
    --batch_size 16 \
    --epochs 100 \
    --total_length 16 \
    --train True

# Multi-GPU Distributed Data Parallel (DDP) training
python multi-label-action-main/dist_main.py \
    --dataset animalkingdom \
    --model msqnet \
    --data_dir ./datasets \
    --batch_size 8 \
    --total_length 16 \
    --distributed True

Evaluate a trained model checkpoint on the test/validation set:

bash
# Evaluation only (skip training)
python run.py \
    --dataset animalkingdom \
    --model msqnet \
    --data_dir ./datasets \
    --checkpoint ./checkpoints/msqnet_msqnet_animalkingdom.pth \
    --total_length 16 \
    --train False

Verify your environment dependencies, model components, and dummy forward pass in seconds:

bash
# Run verification test
python verify_environment.py

# Optional: Generate a synthetic toy dataset to test training pipeline end-to-end
python multi-label-action-main/utility/create_dummy_dataset.py --output ./datasets

📚 Citation

If you find MSQNet helpful in your research, please consider citing our paper:

BibTeX
@InProceedings{Mondal_2023_ICCV,
    author    = {Mondal, Anindya and Nag, Sauradip and Prada, Joaquin M and Zhu, Xiatian and Dutta, Anjan},
    title     = {Actor-Agnostic Multi-Label Action Recognition with Multi-Modal Query},
    booktitle = {Proceedings of the IEEE/CVF International Conference on Computer Vision (ICCV) Workshops},
    month     = {October},
    year      = {2023},
    pages     = {784-794}
}
